詳細說明

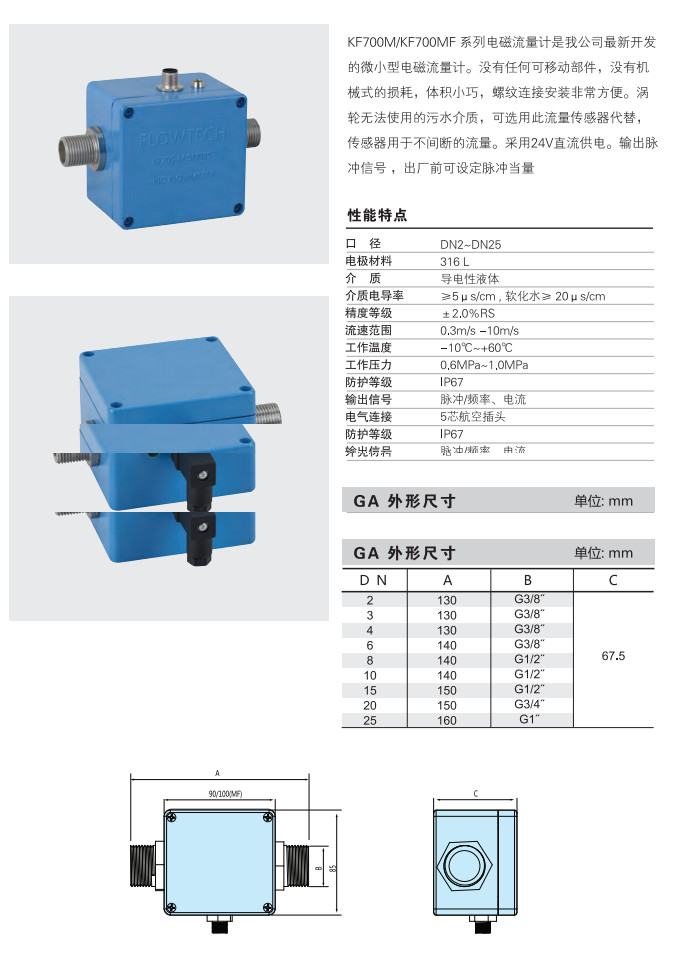

KF700M-A-2,KF700M-A-3,KF700M-A-4,KF700M-A-6,KF700M-A-8,KF700M-A-10,KF700M-A-15,KF700M-A-20,KF700M-A-25,微型電磁流量計
KF700M-B-2,KF700M-B-3,KF700M-B-4,KF700M-B-6,KF700M-B-8, KF700M-B-10, KF700M-B-15, KF700M-B-20,KF700M-B-25,微型電磁流量計
KF700M-B-2,KF700M-B-3,KF700M-B-4,KF700M-B-6,KF700M-B-8, KF700M-B-10, KF700M-B-15, KF700M-B-20,KF700M-B-25,微型電磁流量計

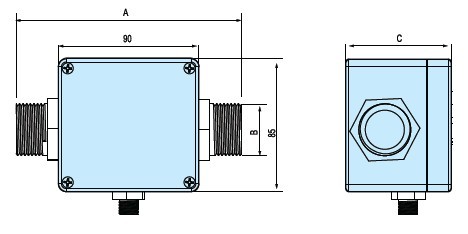

| DNmm | A（mm） | B（mm） | C(mm) |
| 2 | 120 | G3/8" | 67.5 |
| 3 | 120 | G3/8" | |
| 4 | 120 | G3/8" | |
| 6 | 135 | G3/8" | |
| 8 | 135 | G1/2" | |
| 10 | 140 | G1/2" | |
| 15 | 140 | G1/2" | |
| 20 | 145 | G3/4" | |
| 25 | 145 | G1" |

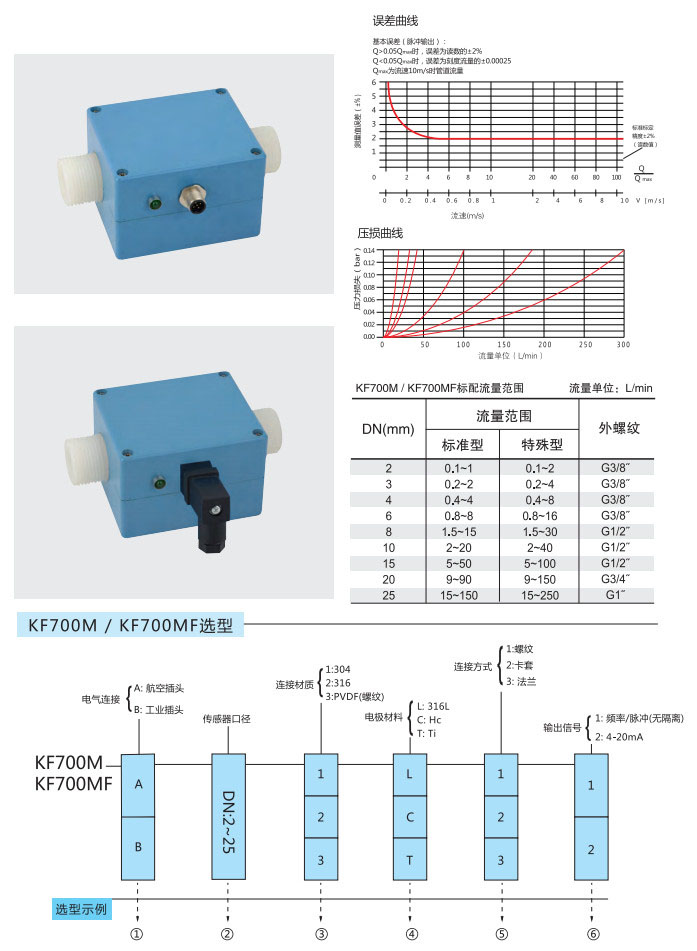

| 標配流量范圍 | |||
| DNmm | 流量范圍LPM | 外螺紋 | |
| 標準型 | 特殊型 | ||
| 2 | 0.1-1 | 0.1-2 | 3/8BSP |
| 3 | 0.2-2 | 0.2-4 | |
| 4 | 0.4-4 | 0.4-8 | |
| 6 | 0.8-8 | 0.8-16 | |
| 8 | 1.5-15 | 1.5-30 | 1/2BSP |
| 10 | 2-20 | 2-40 | |
| 15 | 5-50 | 5-100 | |
| 20 | 9-90 | 9-180 | 3/4BSP |
| 25 | 15-150 | 15-300 | 1BSP |
| 可選流量范圍：口徑.流速對照表 | ||||||||||||
| DNmm | 流速（m/s) | |||||||||||
| 0.3 | 0.5 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | |
| 2 | 0.003 | 0.010 | 0.010 | 0.025 | 0.030 | 0.045 | 0.060 | 0.070 | 0.080 | 0.090 | 0.100 | 0.110 |
| 3 | 0.008 | 0.010 | 0.025 | 0.050 | 0.080 | 0.100 | 0.120 | 0.150 | 0.180 | 0.200 | 0.225 | 0.250 |
| 4 | 0.140 | 0.020 | 0.045 | 0.090 | 0.150 | 0.180 | 0.225 | 0.250 | 0.300 | 0.350 | 0.400 | 0.450 |
| 6 | 0.030 | 0.050 | 0.100 | 0.200 | 0.300 | 0.150 | 0.500 | 0.600 | 0.700 | 0.870 | 0.900 | 1.000 |
| 8 | 0.050 | 0.090 | 0.090 | 0.350 | 0.500 | 0.300 | 0.900 | 1.000 | 1.250 | 1.500 | 1.600 | 1.800 |
| 10 | 0.08 | 0.14 | 0.28 | 0.57 | 0.85 | 1.13 | 1.41 | 1.7 | 1.98 | 2.26 | 2.54 | 2.83 |
| 15 | 0.2 | 0.3 | 0.6 | 1.3 | 1.9 | 2.5 | 3.2 | 3.8 | 4.5 | 5.1 | 5.7 | 6.4 |
| 20 | 0.3 | 0.6 | 1.1 | 2.3 | 3.4 | 4.5 | 5.7 | 6.8 | 7.9 | 9.0 | 10.2 | 11.3 |
| 25 | 0.5 | 0.9 | 1.8 | 3.5 | 5.3 | 7.1 | 8.8 | 10.6 | 12.4 | 14.1 | 15.9 | |
